Aviator 12K
A yacht run by the owner himself,
is used for family cruises, day trips with up to 12 people.
The model offers a large internal volume and comfort, which is comparable to monohulls of 20 meters in length:
The flybridge is equipped with a control station, an area with sofas, a bar and is spread over an area of 20 m2.
The main saloon is surprisingly spacious, with a magnificent dining area for 12 people and a huge galley.
On board there are three double cabins, two bathrooms with showers.
Aviator 12K
Interior
"The maximum speed of Aviator 12 K over 60 km/h will allow you to shorten transitions, get to the place of rest, fishing, to finish the trip in time for daylight, to "escape" from stormy weather.
The economical speed of 30 km/h together with the fuel reserve of 1000 liters guarantees a journey of more than 800 km without refueling.
Already in the basic configuration the yacht is equipped with everything necessary for a comfortable trip: diesel heater, underfloor heating, air recovery system, marine air conditioning, multimedia system, all household appliances, equipped galley".

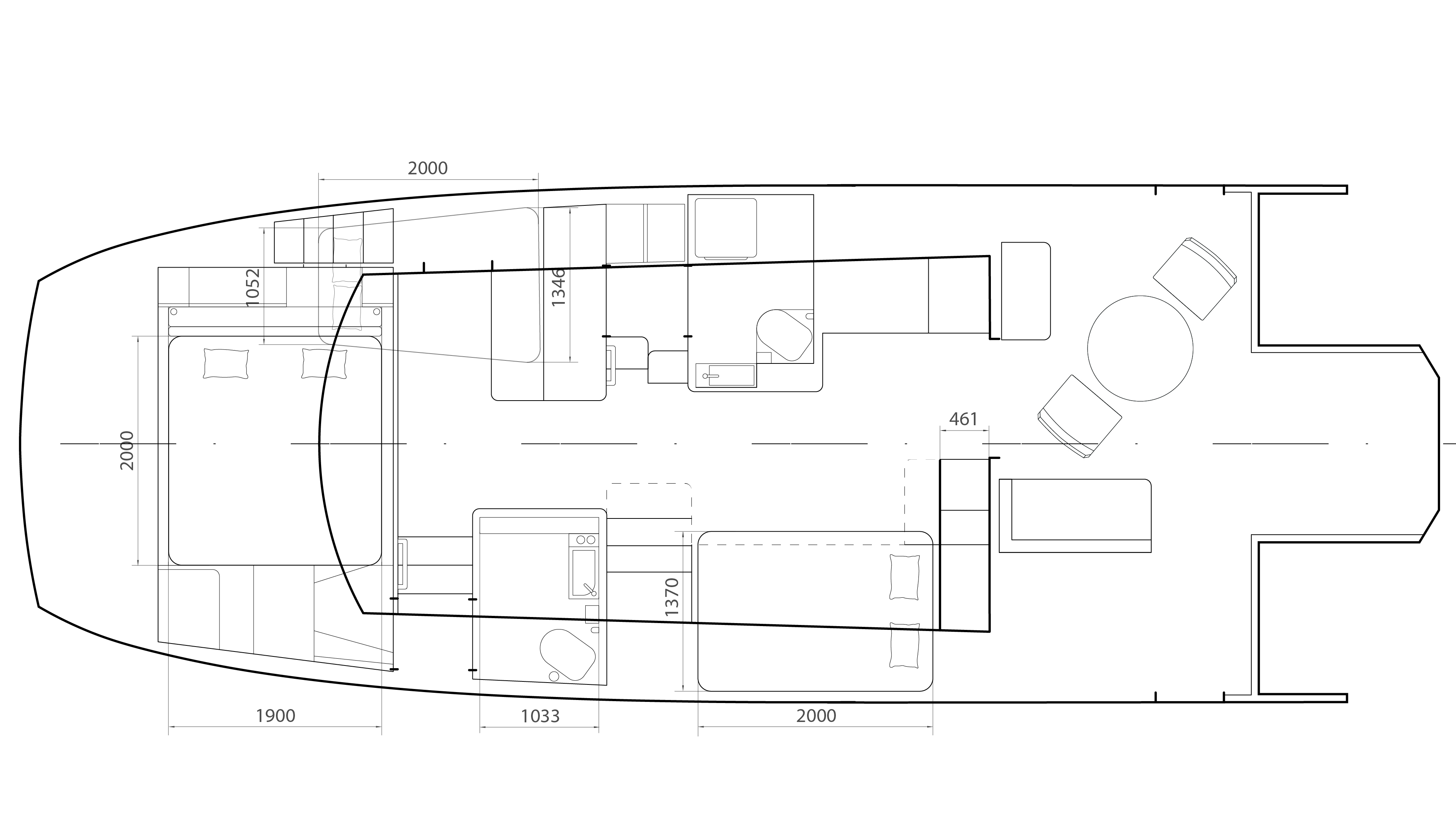

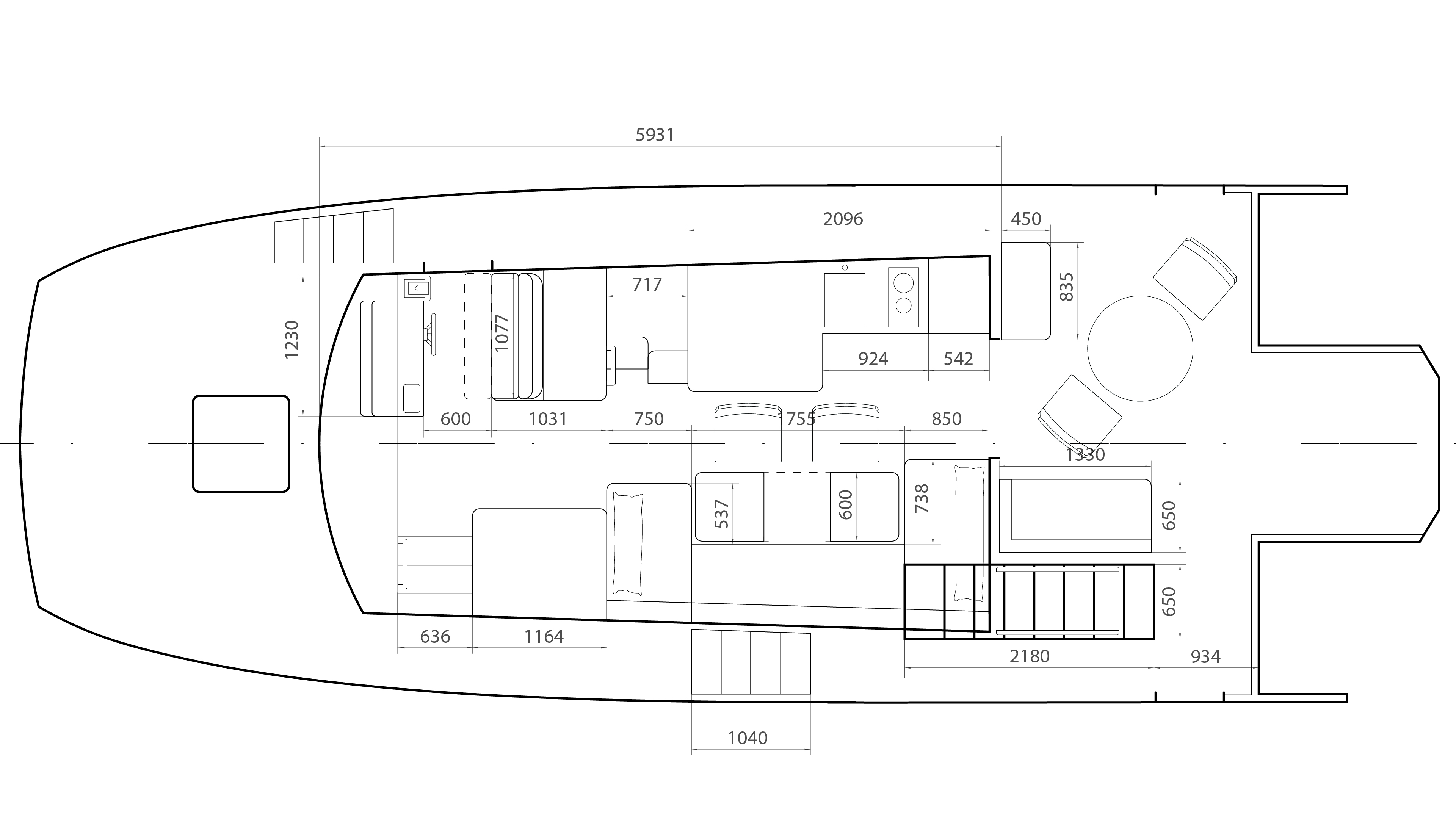

*Dimensions are in millimeters
Description
The yacht is ready for cruising immediately after launching at the yard: equipped with outboard engines, navigation system, communication, anchoring device, mooring kit and many other options.
It is possible to design and install additional equipment in accordance with the wishes of the Shipowner and the tasks of use.
Aviator 12 is a large and spacious yacht, keeping ease of handling, maneuverability, shallow draft and low operating costs.
Characteristics
TECHNICAL
LINE
12,3 meters
WIDTH
4.55 meters
MOTORS.
2 x 325 hp.
HOUSING MATERIAL
Aluminum
FULL MASS
11000 kg
FUEL TANKS
two 800 liters each, for a total of 1600 liters.
CLEAN WATER TANKS
600 liters.
ROOMS
three double cabins, two dressing rooms, main saloon
SLEEPING ACCOMMODATIONS
8 (six in cabins and two in the main saloon)
HULL DRAFT AT FULL LOAD
0.6 m, (with lowered "foot" of motors 1.1 m)
MAXIMUM LOAD
3500 kg
CRUISING SPEED
35 km/h
MAXIMUM SPEED
50 km/h
DESIGN RANGE UNDER FAVORABLE WEATHER CONDITIONS AT CRUISING SPEED
800 km
Equipment
CORPUS
Made of aluminum alloy 5083H111, bottom 6 mm, board 4 mm, bulwark, decks and superstructure 2,5 mm.
Painted with polyurethane paint on epoxy primer, color of choice according to RAL catalog
Glazing with tempered glass, windshield 6 mm, sides and rear 5 mm.
Five openable side portholes with mosquito nets
Deck hatch in forward cabin
OceanAir screen (mesh/blinds) of the sleeping cabin deck hatch
3 pcs. wipers with adjustable intermittent mode.
Two sliding doors to the salon
EVA deck covering, including upper deck
Flagpole
COMFORT
Heat/noise insulation of the hull: above-water side - sprayed FPU 50 mm, underwater side - PPE 20 mm
Heater 5 circuits, diesel/electric 220v with outside air ventilation mode and separate control of heating zones.
Warm water floor in the cabin
Air conditioners in salon and forward cabin with separate controls
Router / Broadband internet 2 sim cards
TV + Smart tv in main salon 50"
TV + Smart tv in forward cabin 32"
Awning (bimini) on 1/2 of the upper deck area
Gangway for going ashore on the foredeck (under the load of 300 kg).
Bathing gangway on the aft deck (300 kg load).
Reinforced saloon table on two supports
Grill on upper deck
Sink with faucet on the upper deck
Upper deck 20 sq.m. with equipped control station, cockpit gangway, aluminum or polished stainless steel railing and tinted polycarbonate windshield.
Dining area on the upper deck
Mirrors in the galley, shelves and lockers of the owner's choice
Table in salon on telescopic legs, lowerable for sleeping place, two poufs under the table
Cabinets and shelves in saloon and cabins at owner's choice
Table in cockpit
Large sofa in cockpit
Large cockpit table
Deck furniture storage
Forward deck mattresses with back rests for sitting use
Cabin curtains
Marine acoustic system with three zones (salon, cockpit, upper deck), amplifier, 10 speakers
Owner's cabin stand-alone sound system with 4 speakers.
PARKING / MOORING
Electric anchor winch with chain counter
Chain stop
Stainless steel chain 30m with swivel hook
Roller with yoke
Delta stainless anchor 25 kg
Bow thruster (2 pcs)
Ducks 6 pcs, cranes, mooring ends
Stern anchoring device with electric winch and anchor 15 kg
SANITARY EQUIPMENT
Fresh water tanks 600 l. with level sensors
Water supply system pump with hydroaccumulator
Electric toilet with ceramic bowl, 80 l. black tank with level sensor and black water removal pump in each sanitary unit
Ceramic sink, faucet, shower head, automatic pump for removal of shower water in each bathroom
Hot water supply from diesel boiler/shore power supply
Deck shower in cockpit hot/cold water supply
Intake water system with auxiliary pump, filters, water outlets in cockpit and chain locker
ELECTRICAL EQUIPMENT
220v shore power outlet and cable
Cabin sockets 220v, USB 5W, 220v sockets on upper deck
Service battery LiFePo4 460 a/h
Combined charger/inverter 3 kW
Solar panel connection preparation
AGM 130 a/h battery to supply anchor windlass and thrusters, two AGM 130 a/h starter batteries, shore charger for them
Main switchboard with automatic fuses 12v and 220v
Navigation lights
KAMBOOZ
Electric stove 2 burners
Sink with mixer tap
Domestic refrigerator 600 mm wide and up to 2000 mm high with freezer compartment
Solid oak or elm wood worktop and fronts
Owner's choice of drawers/shelves
SAFETY
Railings made of 32 mm pipe, aluminum or polished stainless steel
Lockable port doors
Division of each hull into five compartments
Buoyancy units, the vessel is unsinkable
Eight automatic bilge pumps
Aleksandrov's end, two lifebuoys.
Three fire extinguishers
MOTORS / CONTROL
Two 325 hp engines with instrumentation and electronic throttle/reverse knob at each control station
Fuel filters with water separator
Hydraulic power steering with power steering for two stations
Mahogany or genuine leather steering wheels
Lowrance 12" chartplotter on lower control station with echo sounder transducer and external GPS antenna and Lowrance 9" chartplotter on upper control station
Vessel systems monitoring instruments at two control stations
Autohelm
AIS
Diesel generator 10 kW with autonomous fuel tank 100l.
Models
We invite you to discover other Aviator yachts, designed to allow you to enjoy the world of yachting according to your desires.
