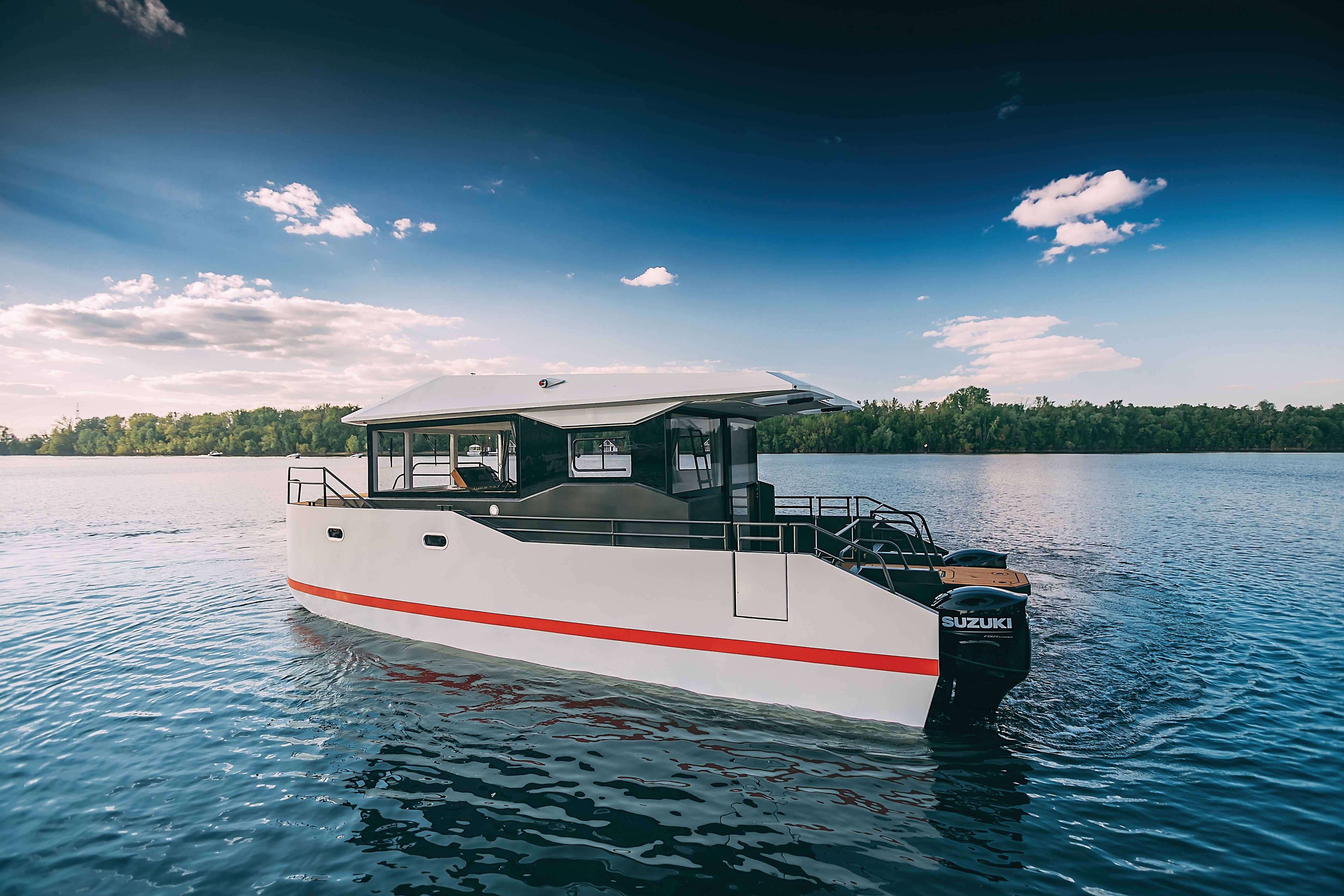

Aviator 10K
A motor catamaran for safe and comfortable cruising in the vast water areas of inland waterways, as well as coastal sea zones with a distance from the shore up to 12 miles, wave height up to 2 meters inclusive.
Due to the multi-hull construction it has high stability, course stability and excellent seaworthiness.
Aviator 10K

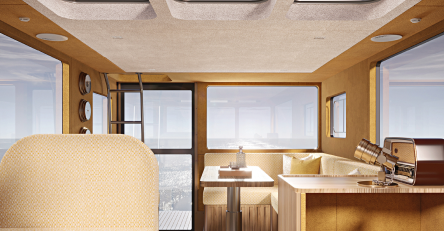

Interior
Big boat-sized yacht
"The maximum speed of over 60 km/h allows you to reduce boring open water crossings, get to the place of rest, fishing faster, you will have more free time at your disposal.
The economical speed of 30 km/h together with a fuel reserve of 800 liters guarantees a journey of over 600 km without refueling.
The tank capacity can be increased to 1,200 liters to get an autonomy of over 1,000 km."
Interior options
Discover other bespoke décor options, where every detail is tailored to our customers' specific requirements.
А10К/003

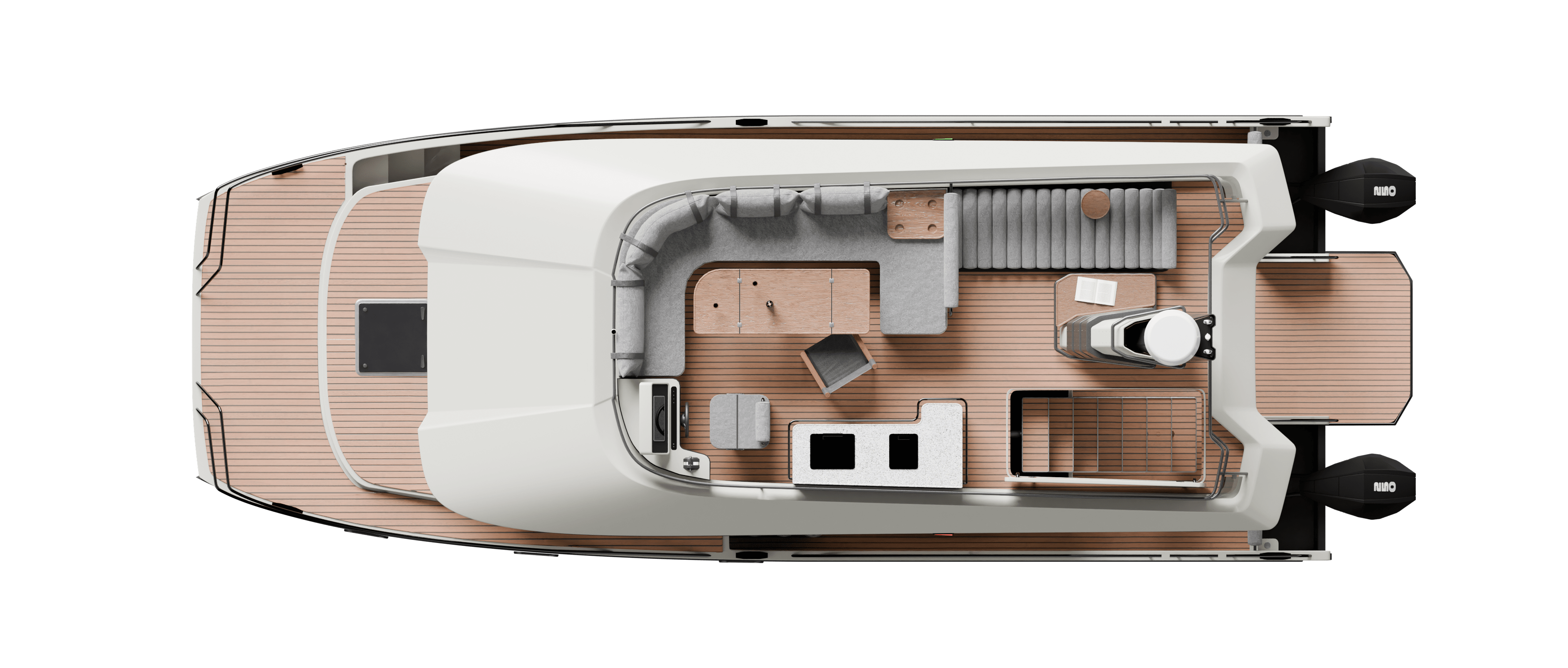

Main Deck
Lower deck
*Dimensions are in millimeters
Description
In the basic configuration the yacht is equipped with everything necessary for a comfortable trip:
- diesel heater,
- underfloor heating,
- "air recuperation system,
- "multimedia system,
- "all appliances,
- equipped galley.
Ready for cruising immediately after launching at the shipyard: equipped with engines, navigation system, anchoring device, mooring kit.
It is possible to design and install additional equipment in accordance with the wishes of the Shipowner and the tasks of use.
Economical sea cruiser, fast yacht for a big company or conqueror of small rivers with water jet engine and 40 cm draft. - everything is possible.
In any of the qualities, Aviator 10 provides the maximum level of safety, uncompromising reserve of structural strength and well thought-out ergonomics.
Characteristics
TECHNICAL
LINE
9,8 meters
WIDTH
3,48 meters
BRIDGE GAUGE [MAST FOLDED]
2,785 meters
BRIDGE CLEARANCE [MAST RAISED]
3.43 meters
DRY WEIGHT
3.58 tons
HALF LOAD
4.5 tons
FUEL RESERVE
2 х 400 liters
WATER SUPPLY
2 х 100 liters
BLACK WATER TANK
100 liters
MAXIMUM NUMBER OF PASSENGERS
12
MAXIMUM NUMBER OF PASSENGERS
4 category 2 discharge
CLASSIFICATION
2 x 200 Suzuki ARX (21 screws, 16 diameter, 21 pitch]
MINIMUM ENGINE POWER
2 х 150 hp.
RECOMMANDED ENGINE POWER
2 х 200 hp.
RECOMMANDED ENGINE POWER
2 x 350 hp.
HOUSING MATERIAL
Aluminum 5083 [bottom and bow bridge trim 5 mm, power set and side 4 mm, bulwark 3 mm, superstructure 2.5 mm]
SPEEDS
MINIMUM HYDROPLANING SPEED
10 knots, 19 km/h.
ECONOMY CRUISE MODE
13-17 knots 24-32 km/h
MAXIMUM SPEED
2x150 - 40 km/h, 2x200 - 50 km/h, 2x350 - 65 km/h
RUNNING DISTANCE
600 kilometers
MAXIMUM SPEED
30 knots, 56 km/h.
RUNNING DISTANCE
165 miles (cumulative consumption per hour 120 liters)
OVERVIEWS.
5600
CRUISE [ECONOMY] SPEED
21 knots, 39 km/h.
RUNNING DISTANCE
260 miles [cumulative consumption per hour -55 liters].
OVERVIEWS.
4100
DISPLACEMENT MODE SPEED
17.5 knots 32 km/h
RUNNING DISTANCE
320 miles [cumulative consumption per hour - 37 liters].
OVERVIEWS.
3500
DISPLACEMENT MODE SPEED
7 knots 13 km/h
RUNNING DISTANCE
610 miles [cumulative consumption per hour - 8 liters].
Equipment
CORPUS
- Made of aluminum alloy 5083H111, bottom 5 mm, board 4 mm, bulwark, decks and superstructure 2,5 mm.
- Painted with matte polyurethane paint over epoxy primer, color of choice according to RAL catalog
- Glazing with tempered glass, windshield 5 mm, sides and rear 4 mm.
- Three openable side portholes with mosquito nets
- Deck hatch in forward cabin
- 3 wipers with adjustable intermittent mode.
- Two sliding doors to the salon
- EVA deck covering, including sun deck
- Flagpole
COMFORT
- Hull heat/noise insulation: above-water side - sprayed FPU 25 mm, underwater side - PPE 20 mm
- Heater 3 circuits, diesel/electric 220v with external air ventilation mode
- Warm water floor in the cabin
- Bathing gangway with places for installation on the foredeck and in the lazeport openings
- Grill/mangalow on aft deck, grill/mangalow rack
- Sun deck 8 sq.m. with gangway from main salon
- Mirror in galley
- Table in salon on telescopic legs, lowerable to organize a sleeping place 200x160 cm.
- Boss marine sound system with 4 speakers (two in salon and two in cockpit)
PARKING / MOORING
- Electric anchor winch with chain counter
- Chain stop
- Stainless steel chain 30m with swivel hook
- Roller with yoke
- Delta stainless anchor 20 kg
- Bow thruster (2 pcs)
- Ducks 6 pcs, cranes, mooring ends
SANITARY EQUIPMENT
- Fresh water tanks 2 100 l. each with level sensors
- Water supply system pump with hydroaccumulator
- Electric toilet with ceramic bowl, black water tank 80 l. with level sensor and black water removal pump
- Ceramic sink, mixer tap, shower head, automatic shower water removal pump
- Hot water supply from diesel boiler/shore power supply.
ELECTRICAL EQUIPMENT
- Shore power socket and cable 220v
- Cabin sockets 220v, USV 5W
- Inverter 1.7 kW
- Service battery LiFeRo4 280 a/h, charger for it
- AGM battery 95 a/h power supply for anchor winch and thrusters, two starter batteries AGM 95 a/h, charger to them
- Main switchboard with automatic fuses 12v and 220v
- Instruments/navigation equipmentNavigation lights
- Instruments for control of ship's systems
- Service battery wattmeter
- Chartplotter 12" Marine Rосkеt with echo sounder sensor and external GPS antenna
KAMBOOZ
- Gas stove with a 5L cylinder.
- Sink with mixer
- Refrigerator 95 l. with freezer compartment
- Table top and fronts in solid oak or elm wood
- Drawers/shelves of the owner's choice
SAFETY
- Railings made of 32 mm tube, painted aluminum alloy or polished stainless steel
- Lockable port doors
- Division of each hull into five compartments
- Buoyancy units, the vessel is unsinkable
- Four automatic bilge pumps
- Aleksandrov's end, lifebuoy
- Two fire extinguishers
MOTORS / CONTROL
- Two Suzuki DF 200 ARX engines with instrumentation and electronic throttle/reverse knob
- Fuel filters with water separator
- Power assisted hydraulic steering
- Mahogany or genuine leather steering wheel
